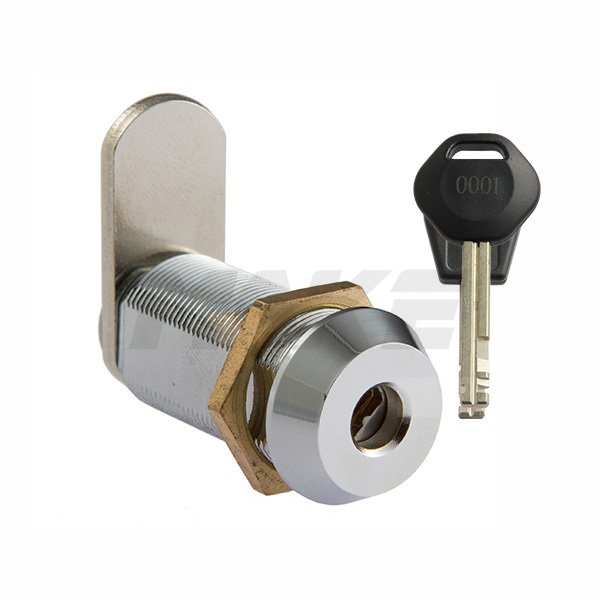

MK102BXL Disc Cam Lock for Locker

This disc cam lock for locker comes with top quality zinc alloy, brass, steel, which has along service time compared with ordinary product. In addition, we adopt the most advanced process and there is four types of key to meet your need. Equipped with strong waterproof and chemical resistant function, it is also available for outdoor use. The function length is range 17.5mm to 34mm. As a matter of fact, this disc cam lock for locker will be the one-stop security solution for gym, workplace, office, hospital, supermarket, etc. Due to the compact design and small size, it is also a perfect part for locker, offer, AD showcase, coin-op, vehicle, mail box & tools box, transport container and rifles outboard engine.

Feature:

Top security key system with four types key for selection.
Strong material, brass lock cylinder anti rust.

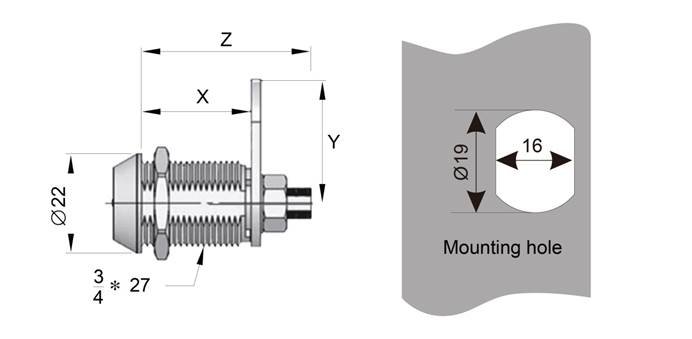

Lock type	MK102BS	MK102BM	MK102BL	MK102BXL	MK102BXXL
Function length(X)	17.5mm	22.5mm	25mm	30mm	34mm
Cam distance(Y)	TBA	TBA	TBA	TBA	TBA
Overall length(Z)	26.5mm	31.5mm	34mm	39mm	41mm
Key way	1	1	1	1	1
Cam turns	90°/ 180°	90°/ 180°	90°/ 180°	90°/ 180°	90°/ 180°

Q: When will you arrange the production?
A: We usually arrange the production immediately after receiving your payment if we have the item in stock. Otherwise, please confirm with us for lead time.
